One-day Rebuild: Garfield Pow-R-Arm Vise

While cleaning the garage I stumbled on an old vise I had planned to use decades ago.  It’s a vintage Garfield Pow-R-Arm hydraulic articulating vise.  The vise can be positioned to hold material at any angle, with a hydraulic cylinder locks the arm in place securely.  This is an interesting tool that is still produced today by Wilton.  This old vise was totally covered in rust and wouldn’t move, so I decided to tear it down and rebuild it.

The pieces came apart easily, to my surprise.  The vise bars were held in place with steel dowels that I pressed out with an arbor press.  The hydraulic cylinder worked well, so I left it alone.  A wire wheel removed most of the rust, and in the tightest places, a drill-mounted wire brush handled the rest.  I then used steel wool pads to scrub the surfaces clean.  Once the pieces were down to bare metal, I used lacquer thinner to ensure the surfaces had no remaining soap or oil film.

I selected Rust-Oleum Farm Implement paint mainly because I had a few cans on the shelf.  The original base was black, with the vertical swivel being red.  This time the vise would be totally black.  I masked the areas that were not to be painted, then painted 3 to 4 coats on each piece.

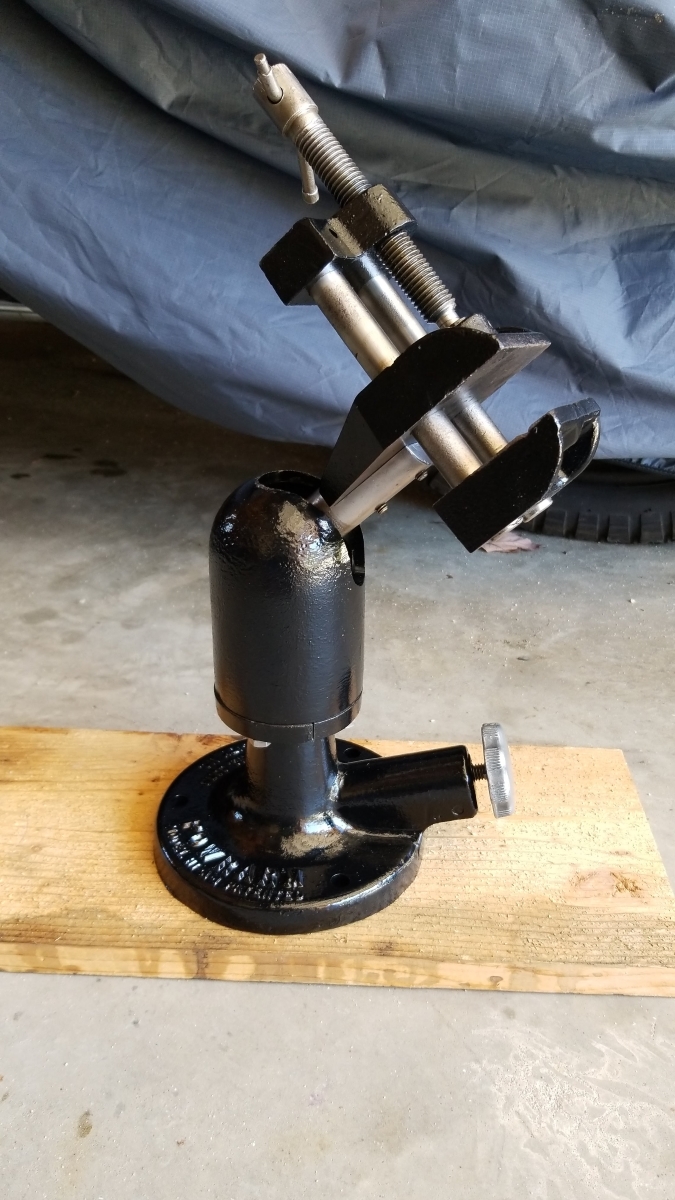

After drying overnight, the pieces went together quickly.  I lubricated the moving parts with a high-quality engine assembly lube, also because I had it on the shelf.  The vise closes smoothly, and the hydraulic arm holds it securely with a twist of the knob.  This vise will look good on the work bench, and should have many years of service left in it.



About Kevin Forth

Always learning, Kevin is an IT professional that likes to tinker with electronics, motorcycles, and whatever he can take apart.

View all posts by Kevin Forth →

8 Comments on “One-day Rebuild: Garfield Pow-R-Arm Vise”

  1. Very cool work on the vice

    Would you please contact me regarding your Bianchi Avanti Sport. I’ve come across a motor that I need help with.

    Thank you.

  2. Very nice example of the Garfield Pow-r-arm. I recently picked up one at a flea market in Painesville, Ohio that was in very bad condition and rebuilt it. Mine was not as rusty as yours, but the hydraulics were a mess. After complete disassembly, I managed to find some brake cylinder cups (5/8″ & 1″) to repair the failed hydraulics. The unit now works as designed and is a pleasure to use. I painted the base of mine machine gray, but left the top the original red, as it still retained some of the original graphics. If you’re interested, I can send some pics of my Garfield Pow-R-Arm with Vise and also the original patent information.

  3. I have the wilton pow-r-arm, just need to source the vice that is screwed into the pow-r-arm, where can I find one.

  4. Please send me a copy of the original patent, I’m looking for the vise component and can’t find anywhere

  5. Hi Kevin,
    I just picked up a Garfield POW R ARM today at a garage sale and am looking forward to restoring it, thanks to your article.

  6. I found a Garfield pow r arm at a garage sale today and look forward to restoring it ,thanks to your article!

    1. Sounds like a great garage sale find! It’s a very useful vice. They are still made today, but are costly.
